SAP VC dependencies live in plain text. No syntax highlighting. No diagnostics. No autocomplete. Raw source code only.

For a feature of this power, the editing experience lags modern IDEs by decades.

I spent three weeks, gradually building what PMEVC must have as a standard feature. Not a Fiori app — an actual editor experience with language server protocol, syntax validation, and interactive dependency visualization. My team uses it daily.

Here is what I built, and why it shows the direction SAP needs to go.

The Problem

SAP VC dependencies are the logic engine of configurable products. They define:

But they are stored in plain text with no tooling support. Edit one character wrong, and the whole constraint net breaks at runtime. Debugging means reading thousands of lines of opaque source code.

No IDE features exist for VC dependencies in any SAP product.

What I Built

Three parts, one stack:

Part Purpose Tech
sap-vc-od-graph Interactive HTML dependency viewer Node.js, D3.js CDN
tree-sitter-sapvc Grammar for VC dependency language Tree-sitter (Rust)
sapvc-lsp + zed-sapvc Language server + ZED editor extension Rust, tower-lsp

The OD graph tool connects to SAP via RFC and reads all dependencies for a material. It parses source code, builds a characteristic relationship graph, and renders an interactive three-panel HTML page.

The ZED extension adds syntax highlighting and real-time diagnostics on top of that same grammar.

My team uses both. The OD graph for understanding a material's full dependency structure. The ZED extension for editing constraint source code with autocomplete and error detection.

The OD Graph Tool

The OD graph tool queries SAP and generates a self-contained HTML page. You run it once per material:

node index.js --material <MATNR> --output graph.html --force --fetch-tables

The --fetch-tables flag pulls variant table content and class characteristic data so the right panel can show full context. The --fetch-bom flag adds the product structure so you can drill down through BOM levels.

It works from cached JSON too — second runs take three seconds instead of sixty.

The Three-Panel Interface

When you open the generated HTML in a browser, you see three panels side by side.

Left panel — structure tree. Two tabs at the top.

The Profile tab shows the dependency hierarchy: procedures, CNETs (constraint nets), constraints, and tables grouped under the config profile. The Environment tab shows classes with their characteristics, variant tables, and the BOM.

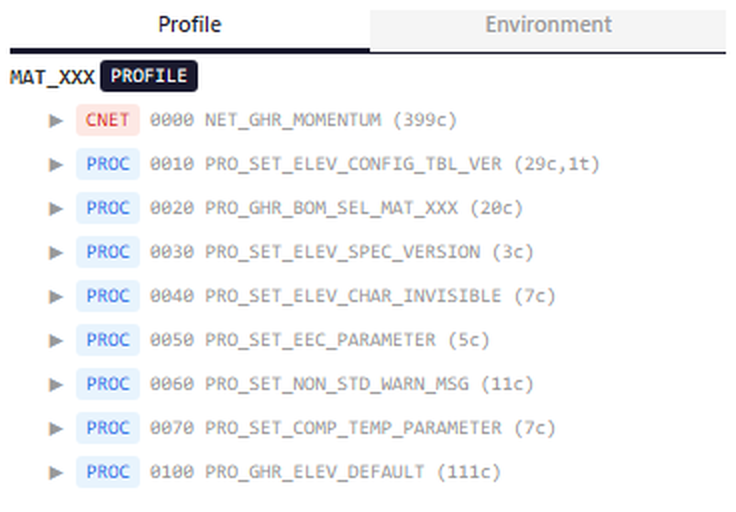

Left panel — the structure tree

Click any item to navigate. Click a procedure name and the middle panel opens its source. Click a class and the middle panel shows all its characteristics. Click a BOM item and you see the component details plus any linked dependencies.

Middle panel — detail view. Context-sensitive.

When you click a procedure in the left panel, the middle panel shows its source code with syntax highlighting. Keywords like IF, AND, IS_A are colored. Comments starting with * are styled. Characteristic names are recognized.

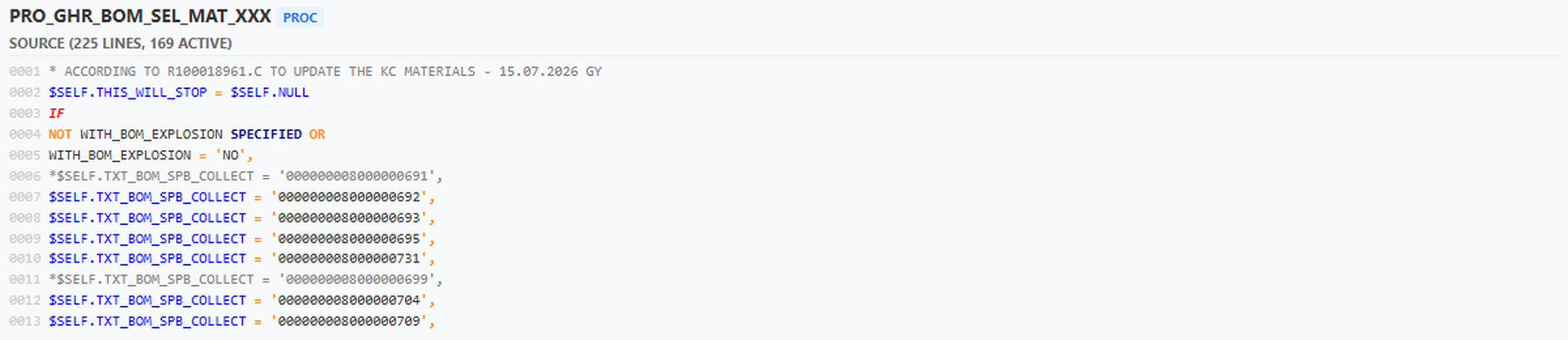

Middle panel — procedure source with syntax highlighting

When you click a class, the middle panel shows the class header. It lists all characteristics with links back to their usage in procedures.

When you click a BOM item, the middle panel shows its metadata and any linked dependencies.

Right panel — reference analysis.

When you click a characteristic anywhere in the left or middle panel, the right panel shows every place it appears. It groups results into three sections: classes that own the char, procedures and constraints that reference it, and variant tables that use it. Each entry shows whether the char is read, written, or defaulted in that context. A small count next to each entry shows how many times the char appears in that dependency's source.

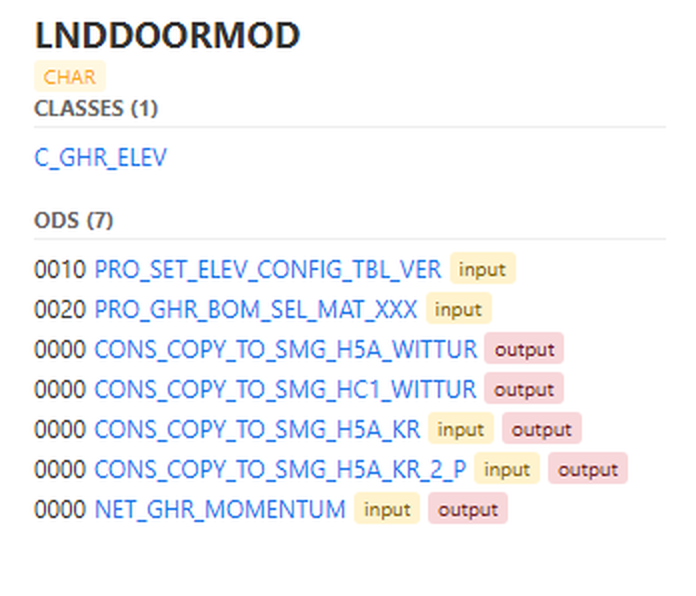

Right panel — characteristic reference analysis

Click any link in the right panel and the middle panel navigates to show that item's detail. The navigation is fully reversible.

BOM Expansion

The --fetch-bom flag adds the configurable BOM to the Environment tab. You see the BOM header, all top-level items, and class items expandable to show classified materials underneath.

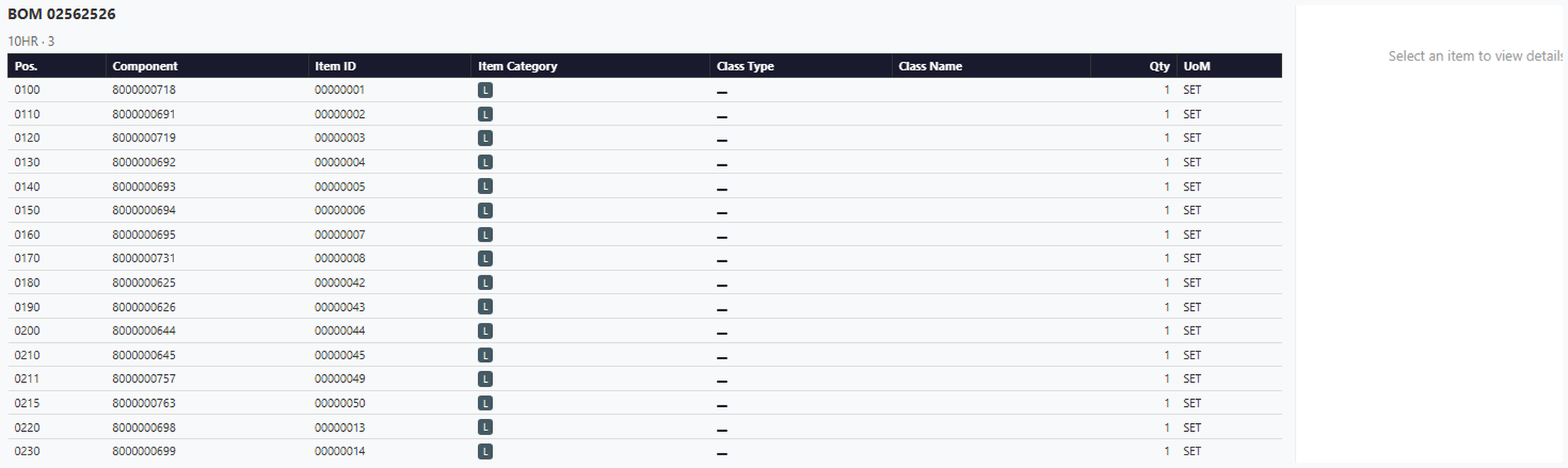

BOM overview table

Click a BOM item to see its metadata and any dependency links attached to it. Click a class item to see the characteristics that control which variants are classified under it. The BOM structure nests recursively — each K-category item can expand to show its classified sub-materials.

This lets you trace from a finished product down through every BOM level to the component that a dependency references.

How the Grammar Works

The tree-sitter grammar parses real VC source code from production systems. It was validated against twenty-one production files spanning nearly eighteen thousand lines.

The tokenizer handles procedure blocks, constraint sections (OBJECTS, CONDITION, RESTRICTIONS), variant function calls, table references, and characteristic expressions with $SELF, $PARENT, and alias notation.

One gotcha that cost me an hour: the grammar defines comment_statement, not comment. The ZED highlights query must use the exact node name. Wrong name and ZED refuses to load the language at all. The error message says Invalid node type "comment" and gives you no other hint.

The ZED Extension

The ZED extension wires the grammar into an actual editor. It is fifty lines of Rust. The grammar does the heavy lifting for highlighting. The LSP server does the heavy lifting for diagnostics.

When you open a .sapvc file in ZED, the editor detects the language from path_suffixes in the language config. A .txt file whose name starts with PRO_ or CONS_ is detected from path_prefixes. Both rules live in config.toml inside the extension. settings.json file_types globs do not work in dev extension mode — that was a dead end.

The LSP connects to ZED over stdio. It receives material metadata at startup and uses it for semantic validation. Unknown characteristic names become warnings. Invalid variant table references become errors.

When you type a dot after a characteristic name, completion triggers. When you right-click a characteristic and choose Go to References, the editor finds every place that char appears across all dependencies.

Diagnostics appear as red wavy lines under syntax errors. Missing colons, unmatched blocks, unknown keywords — all caught before you save the file.

Inside the Language Server

The language server is 1,776 lines of Rust across seven modules. Each module does one job:

Module Lines Job
analyze.rs 589 Semantic diagnostics against the material package
completion.rs 350 Statement starters and TABLE column prefill
server.rs 225 The tower-lsp backend: request routing and LSP lifecycle
hover.rs 223 Type information from the tree-sitter node classification
material.rs 219 Loads the per-material universe
refs.rs 143 Cross-file where-used index
main.rs 27 stdio entry point

What the semantic layer checks

Syntax errors come from the grammar. Logic errors come from the material package, which describes the characteristics, tables, classes, and value ranges of one material. The server compares the file you edit against that universe:

One subtlety worth knowing: a WHERE clause declares an alias.

ET2 IS_A(300) ETOPARAMETERGROUP where Remark = TXT_NON_STD_REMARK

Later conditions reference Remark, not TXT_NON_STD_REMARK. A naive checker flags Remark as an unknown characteristic. The server resolves the alias first, so it reports only real problems.

Tests

The server has fourteen tests across four modules. The names describe the behavior better than prose:

comment_after_value_is_suppressed_as_star_limitation
semantic_unknowns_reported
semantic_value_range_and_type
semantic_where_aliases_exempted
semantic_multiline_assignment_value_check
semantic_class_table_function_checks
semantic_negative_value_with_sign_check
table_column_completion_inside_call
condition_operator_completion_after_ref
no_table_completion_after_closed_call

Run them with cargo test.

One language detail that shapes the completion logic

In SAP VC, IF is a postfix guard:

IF <condition>,

There is no THEN and no ENDIF. The statement ends with a comma. This means the completion engine cannot offer block keywords the way a general-purpose language server does. It offers operators and statement starters instead.

What the Grammar Cannot Do

The grammar handles the constructs in the validated corpus. Three limits are worth knowing, because each one was found the hard way.

Asterisk ambiguity. In VC source, * starts a whole-line comment and also means multiplication. The grammar treats * as a comment. When the lexer sees *, the comment rule matches the longest run and wins. In the validated corpus, 61 lines use * as multiplication — 0.34 percent. Those lines parse with the tail consumed as a comment, and they produce no error node. The semantic layer re-parses such lines with line-aware logic.

Unary minus on the left. A negative value prefix is supported only on the right side of a comparison, as in <= -5. A global value-level unary minus forks against binary subtraction, so the grammar scopes it to that position.

The node name is comment_statement. Covered above. Worth repeating because the failure is silent about its cause.

These limits are in the grammar comments and in the test names. I did not discover them on the first attempt.

Additional Notes on the Stack

The OD graph tool is 1,721 lines of JavaScript across five files. index.js (528 lines) does argument parsing, RFC fetching, and caching. lib/html-renderer.js (577 lines) builds the three-panel page. lib/od-parser.js (251 lines) reads the dependency language. lib/graph-builder.js (226 lines) builds the relationship graph. lib/dep-graph-renderer.js (139 lines) draws it with D3 v7 from a CDN.

The repository also carries ten reference notes, 573 lines in total. They document the BAPI flows behind the code: bom-bapi-flow.md, variant-function-io.md (138 lines), bapi-objcl-getobjects.md, bom-mast-query.md, and others. They are notes for anyone who needs to reproduce the RFC calls.

Why This Matters

SAP sells PMEVC as the future of variant configuration. But the current editing experience is still notepad-like. No source control. No diff. No autocomplete. No validation until runtime.

What I built proves the technology exists. Tree-sitter grammars for domain-specific languages are mature. LSP servers in Rust are production-ready. ZED and VS Code extensions are well-documented.

The missing piece is SAP commitment to ship this inside PMEVC.

Instead of forcing users to edit dependencies in GUI transactions, PMEVC can offer:

This is not speculative. It is what my team built in three weeks with open-source tooling. My team uses it every day.

What Is Missing

The OD graph tool already reads from SAP over RFC. The gap is on the editing side.

The language server works on local files. It cannot fetch dependency source from the server, and it cannot write changes back. A full PMEVC integration will need:

These are engineering problems, not fundamental limitations. The stack supports them. The RFC layer that reads dependencies already exists in the graph tool.

The Bottom Line

I built this as a proof of concept. It shows how an editor experience for PMEVC works in practice. Three weeks of work produced a working language server with diagnostics, highlighting, and visualization. My team uses it daily to understand and edit dependency source.

SAP has the technology to ship this inside PMEVC. What they need is the roadmap commitment.

The question is not whether it is possible. It is whether PMEVC will offer this experience natively, or leave it to tools like mine.

For now, I will keep using the stack I built. It is faster than SAP GUI, more precise than manual validation, and it understands the dependency language.

That is the PMEVC I want.


Four repositories, one stack. All four are public under zpage/ and carry the MIT license.

Repository Purpose
tree-sitter-sapvc Grammar for the VC dependency language
sapvc-lsp Language server: diagnostics, completion, hover, references
zed-sapvc ZED extension: highlighting and language server wiring
sap-vc-od-graph The OD graph tool described on this page

The grammar was validated against twenty-one production dependency files. Those files contain customer configuration data, so they are not in the repositories. The language server ships a small synthetic package so the code runs without them.

Each repository has its own README with build steps and usage.
